Under the 2010 ADA Standards, a mirror located above a lavatory or countertop must have the bottom edge of its reflecting surface no more than 40 inches (1015 mm) above the finished floor. A mirror not located above a lavatory or countertop must have the bottom edge of the reflecting surface no more than 35 inches (890 mm) above the finished floor.
The key phrase is reflecting surface. A decorative frame does not count toward the required reflective height.
The ADA mirror rule in plain language
Section 603.3 of the U.S. Access Board’s ADA Accessibility Standards sets two bottom-edge limits:
- Above lavatories or countertops: reflecting surface bottom edge at 40 inches maximum above finished floor.
- Elsewhere in the room: reflecting surface bottom edge at 35 inches maximum above finished floor.
The Access Board advisory also states that a full-length mirror can accommodate more people and recommends a top edge of at least 74 inches for usability by both ambulatory people and wheelchair users.
Do not measure to the bottom of the frame
A framed mirror may extend several inches below the reflective glass. If the wood or metal frame is at 40 inches but the actual glass begins at 42 inches, the mirror does not satisfy the cited 603.3 measurement.
Measure the visible reflective surface directly.
The faucet can create a real design conflict
On an accessible lavatory, a tall faucet or backsplash can occupy the same space where the mirror needs to begin. That is why accessibility should be coordinated early—before a faucet, backsplash, mirror and lighting are purchased independently.
If the mirror must begin at or below the required height, the faucet and backsplash need to fit below that line without physical conflict.
One compliant mirror may satisfy the room requirement
The Access Board’s technical guidance explains that if a toilet room has both a full-length mirror and a mirror above a lavatory or counter, only one mirror is required to comply with the Standards. However, the applicability of ADA requirements depends on the facility and project, and local codes may add requirements.
For a real commercial or public project, confirm with the responsible architect, code official or accessibility professional.
Residential bathrooms are not automatically ADA projects
A private home bathroom does not become “ADA compliant” simply because a mirror is mounted at 40 inches. Accessibility includes clear floor space, fixture heights, reach ranges and many other requirements.
If you are adapting a home for a wheelchair user, the ADA measurements can still be useful reference points, but the best layout should be based on the actual user and applicable local requirements.
How mirror height affects mirror size
When the bottom reflective edge must be low, a mirror with generous vertical dimension can still serve standing users. For example, a tall mirror may cover seated and standing sightlines better than a shallow landscape mirror.
This is why mirror height and placement should be solved together rather than independently.
Can a decorative 30×40 mirror be used?

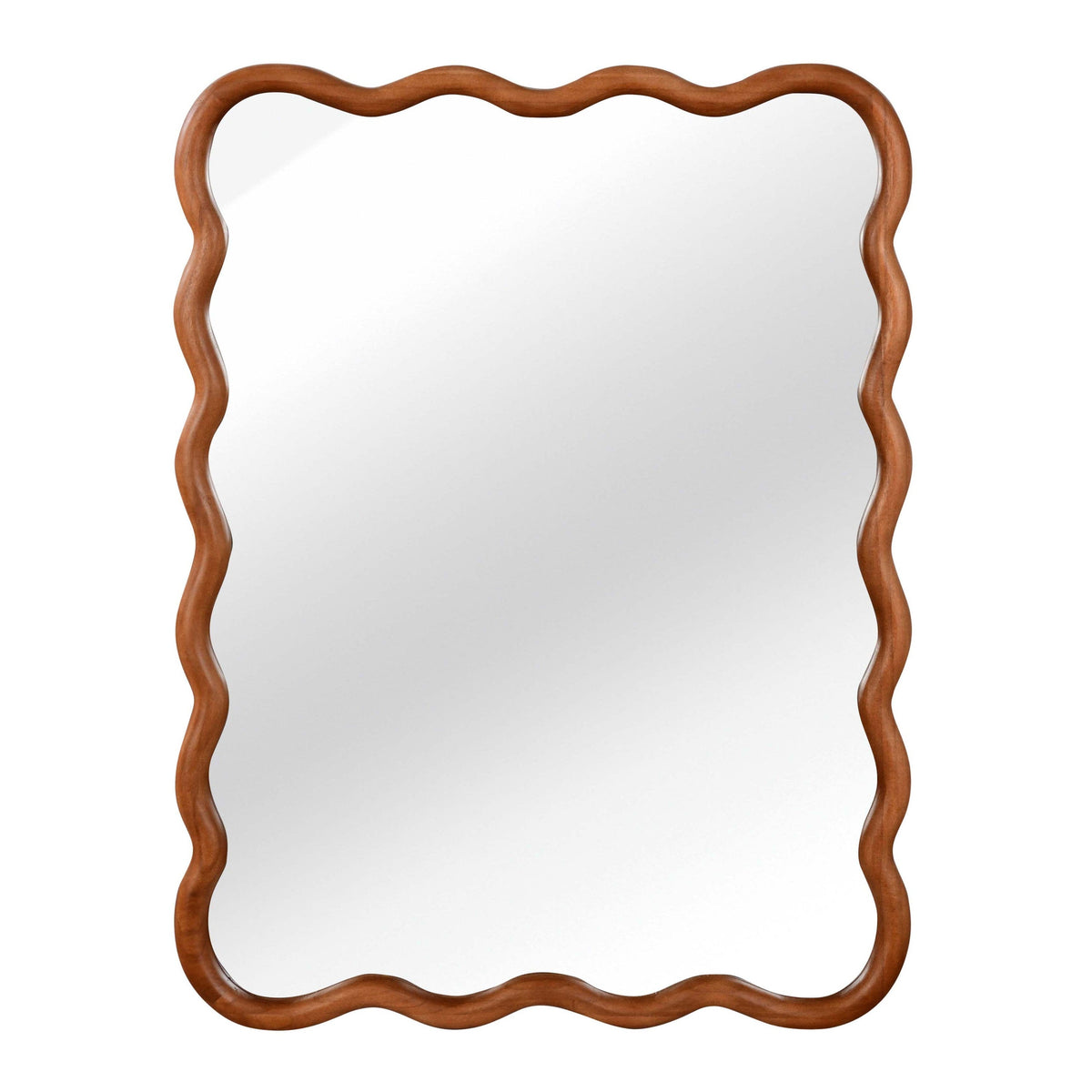

A 30×40 Wavy Solid Wood Bathroom Mirror may fit an accessibility-oriented design if its actual reflective surface, mounting method and installed height satisfy the project requirements. The outside frame dimension alone is not enough to determine compliance.
Before specifying any decorative framed mirror for a regulated project, confirm the reflective-glass dimensions and mounting details.
Lighting must also work for seated users
A correctly mounted mirror can still be uncomfortable if lighting creates glare or strong face shadows. Side lighting or evenly distributed vanity lighting can improve usability. If you are designing a fully accessible room, coordinate electrical controls and reach requirements as part of the overall plan.
ADA vs “comfortable for a short person”
These are different questions. A mirror can be comfortable for a shorter standing adult and still fail a regulated accessibility measurement. Conversely, a mirror can meet the 40-inch bottom-edge requirement but still be poorly lit or too small for the specific users.
For shared-home ergonomics, see bathroom mirror height for tall and short users.
Measurement checklist
- Confirm whether the project is subject to ADA Standards or another accessibility code.
- Identify whether the mirror is above a lavatory/countertop or elsewhere.
- Measure from the finished floor.
- Locate the bottom edge of the reflective glass.
- Do not substitute the frame edge for the glass edge.
- Check faucet and backsplash conflicts.
- Check usable top-edge height for standing users.
- Coordinate lighting, controls and the rest of the accessible bathroom layout.
Common mistakes
Measuring to the frame instead of the reflecting surface.
Assuming every residential bathroom must follow ADA Standards.
Treating mirror height as the only accessibility requirement.
Buying a tall faucet before checking mirror clearance.
For the related choice, see our bathroom mirror height guide.
FAQ
What is the ADA mirror height above a sink?
The bottom edge of the reflecting surface must be 40 inches maximum above the finished floor for mirrors located above lavatories or countertops under Section 603.3.
What about a mirror away from the sink?
The bottom edge of the reflecting surface must be 35 inches maximum above the finished floor.
Does the ADA specify the top of the mirror?
The 603.3 requirement focuses on the bottom edge. An advisory recommends a top edge of at least 74 inches to serve a broader range of users.
Why “40 inches to the mirror” can be misleading
Project notes sometimes shorten the requirement to “mirror at 40 inches,” but that wording can cause mistakes. The ADA text refers specifically to the bottom edge of the reflecting surface for a mirror above a lavatory or countertop. A frame, decorative border or nonreflective lower panel does not substitute for reflective glass at the required height.
Coordinate the mirror with the accessible lavatory design
Mirror height should be checked alongside the lavatory, counter, faucet and clear floor space. If those elements are selected independently, a tall backsplash or faucet may make the mirror difficult to place correctly. Accessibility coordination is most efficient before plumbing rough-in and wall finishes are complete.
Local codes and project scope still matter
The federal ADA Standards are not the only rules that can apply to a project. State or local accessibility codes, facility type and project scope can impose additional requirements. For a regulated commercial project, use the current adopted code documents and the project’s design professional or authority having jurisdiction rather than relying on a general web guide alone.
Document the finished-floor measurement on regulated projects
For commercial work, record the dimension from the final finished floor to the bottom of the reflecting surface after installation, not only on the drawing. Flooring buildup, countertop substitutions and field adjustments can change the final result. Project teams commonly benefit from checking this dimension before closeout, along with the other accessible elements in the toilet or bathing room.
If a decorative frame obscures part of the lower glass, measure to the first usable reflecting surface rather than assuming the manufacturer’s outside dimension proves compliance.
Sources reviewed
- U.S. Access Board — ADA Standards Chapter 6, Section 603.3 Mirrors
- U.S. Access Board — guide to lavatories, sinks and accessible mirrors
- Matrix Mirrors — mirror sizing and ADA planning discussion
Editorial note: Reviewed September 22, 2026. This is general educational information, not project-specific code or legal advice.
