The easiest way to coordinate vanity width, mirror width, and light width is to treat the vanity as the outer furniture boundary, the mirror as the grooming zone, and the light as the illumination zone. The three widths should relate to one another, but they do not need to match exactly.
Quick answer
A common starting point is a mirror that is the same width as or narrower than the vanity, with an above-mirror light that is narrower than the mirror or otherwise visually contained within the vanity composition. KOHLER advises that mirrors are typically narrower than or equal to the vanity width, while The Home Depot’s current vanity-light guidance suggests choosing a bar light roughly 4 inches shorter than the vanity as a general balance rule.
Start with the vanity width
Measure the actual installed width, not the box label alone. Include countertop overhang where it affects visual balance. Also note whether the sink is centered and whether the vanity touches a side wall.
Then choose mirror width
For many single vanities, a mirror slightly narrower than the vanity leaves visible wall or backsplash at each side. That can make the composition feel intentional and provide space for sconces. A full-width mirror can also work, especially when maximizing reflection is the priority.
Compare the tradeoffs in full-width mirror vs smaller vanity mirror.
Then choose light width
Above-mirror fixtures are often visually strongest when they stay within the mirror or vanity width. KOHLER’s lighting quick tips have historically suggested that a large vanity sconce can be about 75% of the mirror width; The Home Depot suggests a vanity bar approximately four inches shorter than the vanity. Use these as starting points, not universal code requirements.
Why exact percentages are not universal
Two fixtures with the same width can look very different. A six-light bar with clear shades has more visual volume than a slim integrated LED strip. A wavy mirror may have a 30-inch maximum width but be narrower in several places. Scale is visual as well as numerical.
24-inch vanity example
A compact vanity may use a mirror around 20–24 inches wide and a smaller two- or three-light fixture. If there is no room for side sconces, an above-mirror light keeps the wall simple.
30–36-inch vanity example
This range works with many 24–30-inch mirrors. A vertically oriented 30×40 mirror can fit naturally over a 30–36-inch vanity when side clearances are appropriate.
48-inch vanity example
A mirror in the mid-30s to low-40s can leave breathing room, while a wider mirror can increase reflection. The light can then be sized to the mirror and desired output. Do not make the light wider simply to “fill” the vanity if its proportions overwhelm the mirror.
60-inch or larger vanity example
Large vanities may use one wide mirror, two mirrors, or a combination with side/center sconces. Lighting can be one long fixture, two smaller fixtures, or sconces around the mirrors. See how to light a double-sink vanity.
Side sconces change the width calculation
If sconces flank the mirror, leave enough room for the fixture backplates and shades plus visual breathing space. The mirror may need to be narrower than you would choose for an overhead-light layout.
Off-center sinks need a visual center, not blind symmetry
A vanity cabinet may be wider than the actual grooming zone. When the sink is offset, center the mirror on the sink/user zone unless the full wall composition suggests another solution.

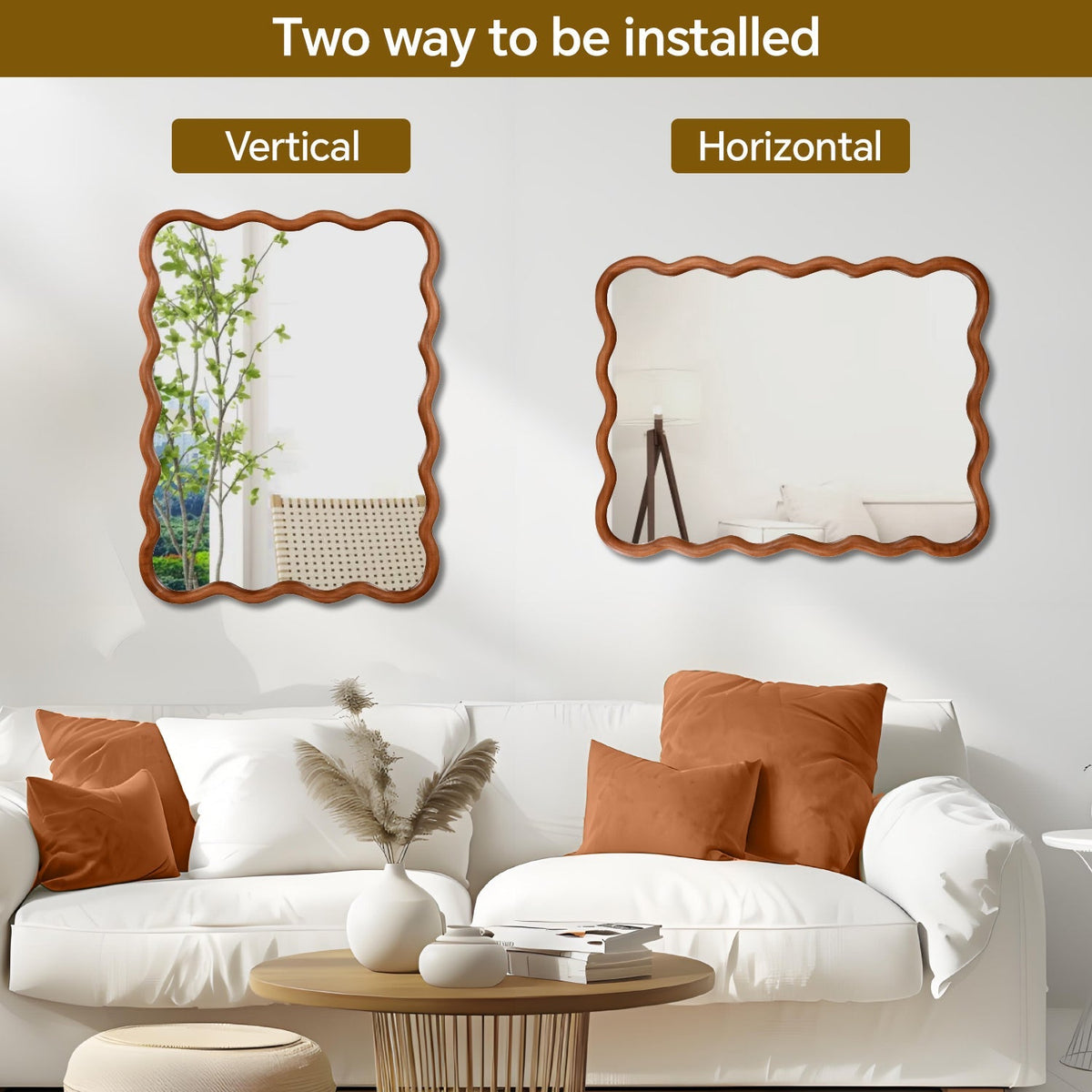

What about a 30×40 mirror?
The 30×40 Wavy Solid Wood Bathroom Mirror is 30 inches wide vertically and 40 inches wide horizontally. That makes it a useful example of how orientation changes the entire width equation. On a 36-inch vanity, vertical orientation may leave room around the frame; horizontal orientation may exceed the cabinet width but could still work on a wider countertop or wall composition.
What about a 36.8-inch vanity light?
The Golden 6-Light Bathroom Vanity Light is 36.8 inches wide. It naturally suits broader mirrors and vanities. Pairing it with a narrow 24-inch mirror would usually feel top-heavy; pairing it with a 40-inch-wide horizontal mirror or a larger vanity creates a more balanced relationship.
Use painter’s tape to compare all three widths
Mark the vanity’s outer edges, then tape the proposed mirror and light widths above it. Stand at the bathroom doorway and at the sink. This reveals whether the light appears to float too wide, the mirror feels undersized, or the whole composition is crowded against a wall.
Account for shades, not just the metal bar
Product width should include the outermost glass shades or decorative elements. A bar may be 30 inches long while glass projects farther. Always use the published overall dimensions.
Account for mirror frame width
Framed mirrors trade some reflective area for decorative material. Two mirrors with the same outside width can provide different usable reflection. If grooming visibility matters, compare the actual glass area as well as outer dimensions.
Common mistakes
- Using one percentage as a rigid rule.
- Comparing nominal vanity width with actual mirror outside width.
- Ignoring glass shade projection.
- Forgetting side-sconce space.
- Choosing a wide light over an undersized mirror.
FAQ
Should the mirror be wider than the vanity?
It can be in some designs, but a mirror equal to or narrower than the vanity is the more common starting point.
Should the vanity light be wider than the mirror?
It can work, but many layouts look more balanced when the light is contained within the mirror or vanity width. Fixture shape and shade size matter.
Do mirror and light widths need to match?
No. They should look proportionate and fit the wall, not necessarily share the same number.
A practical nested-width method
Write the three widths in descending order and check whether the relationship feels intentional. Example: 48-inch vanity, 40-inch mirror, 32-inch light. Another valid composition might be 48-inch vanity, 48-inch mirror, 36-inch light. What matters is that no element appears accidentally undersized or extends into neighboring walls without a reason.
When the light can be wider than the mirror
This can work when the fixture still sits comfortably within the vanity width and its shades visually frame the mirror rather than overpower it. It is easier with a low-profile bar than with large glass globes. Check the result from the doorway, because a light that seems only slightly wider on paper can look much broader once shade diameter is included.
When the mirror can be wider than the vanity
A wider mirror may be appropriate on a floating counter, wall-to-wall backsplash, or intentionally oversized composition, but it should not crowd side walls, switches, or sconces. If the mirror crosses beyond the cabinet, ask whether it aligns with the countertop rather than the cabinet box. Use the actual installed geometry rather than a generic rule.
Use centerlines as well as widths
Two correctly sized elements can still look wrong if their centers do not align. Mark the sink centerline vertically through the mirror and light. On a single-sink vanity, this visual axis often matters more than a small difference in width.
Sources reviewed
- KOHLER — Mirror Buying Guide
- The Home Depot — Vanity Lighting Buying Guide
- KOHLER — Lighting Quick Tips Guide
Editorial note: Reviewed September 22, 2026. Width ratios are design starting points, not universal building-code rules.
