A practical starting point is to leave enough space above the faucet for operation, cleaning and visual separation, then fit the mirror within the remaining wall height. There is no universal clearance for every bathroom, because faucet height, handle movement, backsplash thickness and mirror frame depth all vary.
One current KOHLER mirror-planning guide recommends at least three inches of clearance above the faucet and below the lights. Other planning guides use larger general gaps, which is why the product-specific layout matters more than a single internet number.
Measure the highest moving part of the faucet
Do not measure only to the spout if the handle rises higher. For widespread faucets, lever handles may extend above the body. For single-handle faucets, the control may tilt backward. Mark the maximum operating position before deciding where the mirror can begin.
Three inches can be a useful minimum planning point
KOHLER’s current mirrors and medicine cabinets guide states that the mirror should provide a minimum of three inches of clearance above the faucet and below the lights. That is a manufacturer planning recommendation, not a universal building-code dimension.
If your faucet has a tall handle, a pull-up drain rod or unusual movement, more clearance may be necessary.
Why some bathroom guides show larger gaps
Lowe’s bathroom-planning guidance suggests allowing eight inches or more between the top of the sink or countertop and the bottom of a mirror or medicine cabinet, while also considering user height. That measurement begins from a different reference point than “above the faucet,” so the numbers should not be treated as direct contradictions.
Always compare like with like: countertop-to-mirror is not the same measurement as faucet-top-to-mirror.
Backsplashes change the visual and physical baseline
If your backsplash rises several inches above the countertop, the lower mirror edge may relate more naturally to the backsplash top than to the counter. Leave enough room to clean the wall and avoid a frame that visually collides with the backsplash.
See our mirror-to-backsplash spacing guide for that decision.
Wall-mounted faucets are different
When the faucet is mounted on the wall, the mirror and faucet compete for the same vertical plane. In that case, follow the faucet rough-in and trim requirements first. Do not position mirror anchors where they could interfere with plumbing or service access.
Tall vessel faucets need extra planning
A vessel sink can push the faucet significantly higher. That may force the mirror upward, reducing usability for shorter people. Consider a taller mirror, a different faucet style or side lighting if the space above becomes too tight.
For the complete layout, see bathroom mirror placement over a vessel sink.
What if you use a framed mirror?
Measure the outside bottom edge of the frame as well as the reflective glass. A thick wood frame can sit closer to the faucet than the glass and may be more vulnerable to repeated splashing.

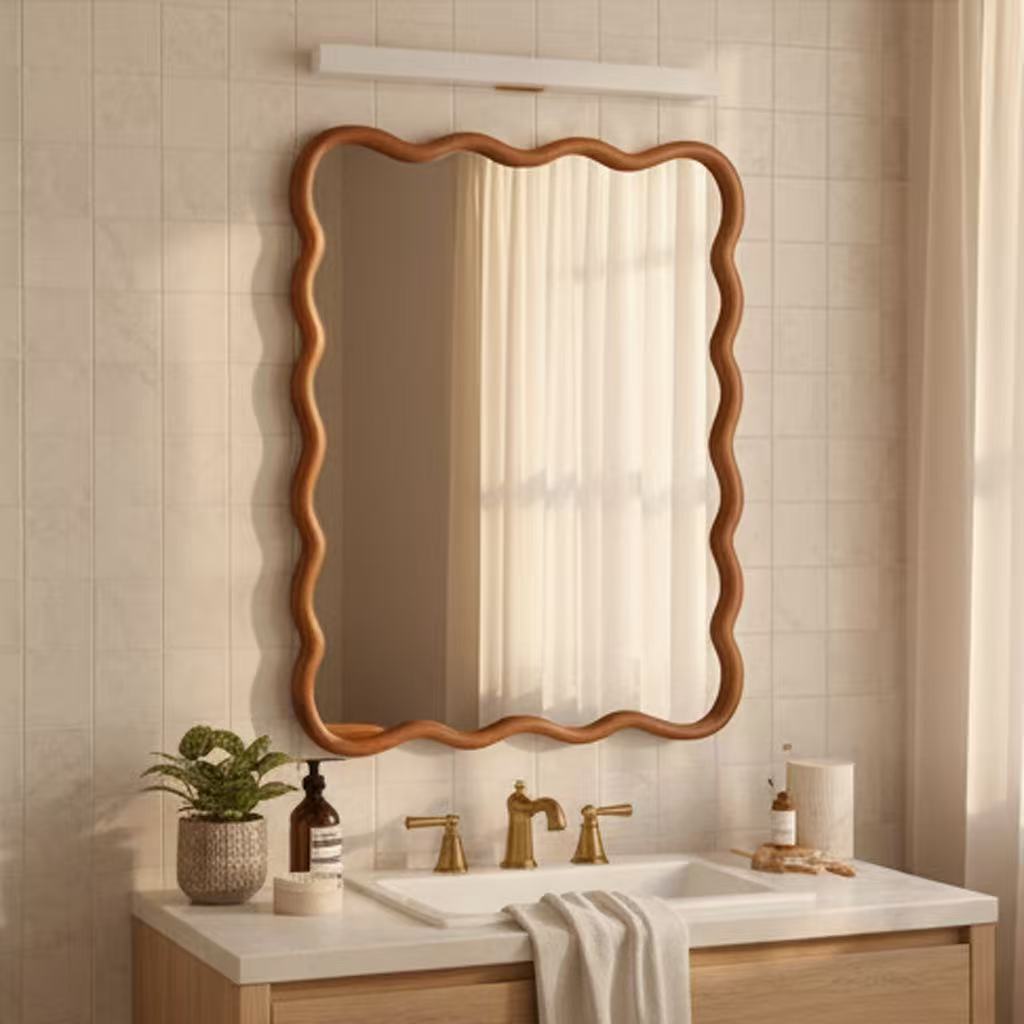

The 30×40 Wavy Solid Wood Bathroom Mirror has a substantial decorative wood perimeter, so mock up the outside dimensions rather than only a 30×40 rectangle of reflection.
Check cleaning access
If the mirror nearly touches the faucet, cleaning behind the spout becomes difficult. Leave enough room for a cloth and for routine faucet maintenance. This is a practical reason not to push the frame down to the minimum possible gap.
Check the vanity light before lowering the mirror
A lower mirror can improve reflection for shorter users, but only if there is enough space above for the light. Measure both constraints at the same time. If the mirror is too tall for the available zone, choose a different proportion rather than squeezing it against both fixtures.
A simple measurement method
- Install or confirm the finished countertop and backsplash height.
- Install or confirm the faucet model.
- Move the faucet handles through their full range.
- Mark the highest point reached.
- Add the manufacturer-recommended clearance.
- Mark the lowest possible mirror-frame edge.
- Measure to the light or ceiling limit.
- Choose a mirror that fits the remaining height.
- Test user sightlines before drilling.
Common mistakes
Measuring from the countertop and forgetting the faucet height.
Using a three-inch rule without checking handle movement.
Forgetting the frame is thicker than the mirror glass.
Leaving such a large gap that the mirror becomes too high.
Ignoring cleaning access behind the faucet.
FAQ
Is 3 inches above the faucet enough for a mirror?
It can be a reasonable starting point for compatible layouts, and KOHLER publishes a three-inch minimum recommendation in its mirror planning guide. Verify your exact faucet and mirror requirements.
Should I measure from the faucet spout or handle?
Use the highest point, including controls in their operating positions.
Can the mirror touch the backsplash?
Some installations place mirrors close to tile or backsplash, but leaving a small practical gap often improves cleaning and helps decorative frames look intentional.
Use the manufacturer drawings when dimensions are tight
Product specification sheets often show faucet height, handle travel and mirror mounting points more accurately than showroom photos. When the gap is tight, work from those drawings rather than estimating from a product image. A half-inch mistake can matter if a lever handle moves backward toward the mirror.
Think about future faucet replacement
A mirror installed extremely close to one low-profile faucet can limit future choices. Leaving a modest practical buffer gives you more flexibility if the faucet is replaced later with a taller model. This is especially useful in rental properties and bathrooms intended to last through several fixture updates.
Check reflection before choosing extra clearance for looks
Large decorative gaps can look elegant in a rendering, but every additional inch above the faucet raises the mirror. Before increasing the spacing purely for appearance, have the shortest regular user stand at the sink and verify that the lower reflecting surface still works comfortably.
Do not confuse faucet clearance with electrical clearance
The lower mirror edge and the vanity light are separate constraints. A layout may have generous room above the faucet but too little space below the light. Always measure the entire vertical envelope before ordering the mirror rather than solving the lower gap in isolation.
Before ordering: create one vertical dimension chain
Write the wall dimensions in one sequence: finished floor to countertop, countertop to faucet top, faucet top to proposed mirror bottom, mirror outside height, and mirror top to light. This exposes conflicts immediately. If the sum does not fit, decide which element can realistically change before purchasing anything.
For a framed mirror, use the outside frame height in the chain and separately verify the reflective area. For a vessel sink, include the bowl and taller faucet instead of relying on conventional vanity assumptions.
Final check: operate every faucet handle and drain control while the mirror outline is taped on the wall. If hands or hardware approach the proposed frame, increase the gap before drilling.
If dimensions are close, measure twice after the faucet is installed and before drilling the mirror anchors.
Sources reviewed
- KOHLER — mirror clearance and measuring guidance
- Lowe’s — bathroom planning guide
- Matrix Mirrors — bathroom mirror sizing guide
Editorial note: Reviewed September 22, 2026. Clearance figures are planning guidance; always follow the current faucet and mirror installation instructions.
