A medicine cabinet changes vanity-lighting geometry because it can project several inches farther from the wall than a flat mirror. If the cabinet is surface-mounted, an overhead light that works perfectly above a flat mirror may shine onto the cabinet top instead of the face. The first measurement is therefore cabinet depth, followed by door swing, light projection and side clearance.
Recessed cabinets are easier because the mirror face sits closer to the wall. Surface-mount cabinets need more deliberate lighting, especially when the light is installed above them.
Identify recessed or surface-mount first
A recessed medicine cabinet sits mostly inside the wall cavity, so its mirror face behaves more like a conventional wall mirror. A surface-mount cabinet attaches to the wall face and can project several inches into the room. That projection becomes an obstruction between an overhead fixture and the sink or face below.
For an overhead light, measure projection—not just width
Several current medicine-cabinet guides emphasize the same practical issue: if a surface-mounted cabinet sticks out from the wall, a shallow overhead fixture can be blocked by the cabinet itself. The light source needs enough forward projection to clear the cabinet face and send light toward the user rather than mainly onto the cabinet top.
Do not turn this into a universal “three inches more” rule. Cabinet depths, shade positions and beam patterns differ. Measure the cabinet projection and the exact fixture projection, then evaluate whether the source actually clears the cabinet face.
Side sconces avoid the depth problem
If there is wall space beside the cabinet, side sconces bypass the projection conflict entirely. They can also place light closer to face level. Kohler’s medicine-cabinet buying materials show cabinets flanked by sconces, which illustrates how common this layout is.
Use our guides to sconce height and sconce spacing when planning around the cabinet width.
Check the door swing
A medicine-cabinet door can project into the same space as a nearby sconce, shelf or wall return. Open every door fully and measure the swept path before fixing lights beside the cabinet. This is especially important with multi-door cabinets where the outer doors swing toward the fixtures.
An overhead bar usually avoids side-door interference, but a deep fixture can still conflict visually or physically if the cabinet is tall and mounted high.
Lighted medicine cabinets may need less extra task lighting
Some modern cabinets include front-facing or side-integrated LEDs. In that case, additional overhead lighting may be redundant if the integrated source already provides sufficient useful light. But “lighted” does not guarantee good task performance: verify output, color temperature, CRI, diffusion and whether the light actually reaches the face.
A separate ambient ceiling light can still be useful even when the cabinet provides task lighting.
Height is determined by the cabinet and user together
Do not choose the overhead fixture height in isolation. Set the medicine cabinet so its mirror works for the regular users and its doors clear the faucet and counter. Then evaluate the remaining wall above it. Mirrorwright’s recent cabinet guide emphasizes this user-first approach rather than relying on one fixed mounting height.
Width still matters, but depth is the unique variable
Once projection is solved, compare the light width with the cabinet and vanity. A very wide bar can overpower a narrow cabinet, while a tiny fixture may leave the mirror visually underlit. Our vanity-light width guide remains useful, but a medicine cabinet adds the extra depth check.
Can our current vanity light go over a medicine cabinet?
We do not treat the Golden 6-Light Bathroom Vanity Light as an automatic medicine-cabinet match. The product listing provides overall dimensions, but fit above a specific cabinet depends on the cabinet projection, fixture projection and shade geometry. Measure both products before considering the pairing.
Medicine-cabinet lighting checklist
- Identify recessed or surface-mount installation.
- Measure cabinet width, height and projection.
- Open doors fully and check swing clearance.
- If using an overhead light, compare its forward projection with the cabinet face.
- If using side sconces, check cabinet-door and wall clearance.
- Verify lumens, CCT and CRI if the cabinet has integrated lighting.
- Plan wiring with a qualified electrician when new boxes are needed.
Common mistakes
Buying the light from width alone. Surface-mount cabinets make projection the critical extra dimension.
Ignoring door swing. A sconce can fit on paper and still block a cabinet door.
Adding another bright source to a strong lighted cabinet. More light can create glare without improving visibility.
Treating all medicine cabinets like flat mirrors. Recessed and surface-mount geometry are not the same.

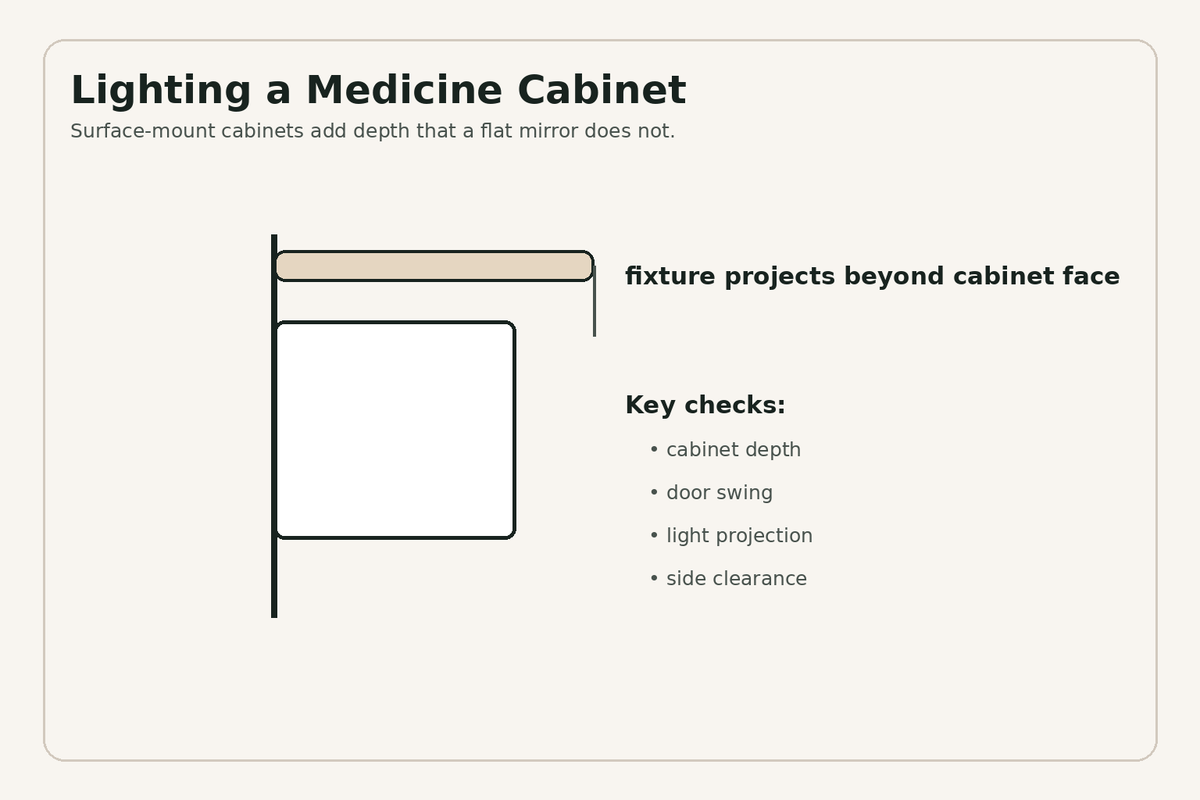

Surface-mount cabinets need a side-view measurement
Most bathroom measurements are taken straight across the wall, but a surface-mount cabinet creates a three-dimensional problem. Stand at the side and measure from the finished wall to the cabinet face, then compare that with the position of the fixture’s actual light source. A decorative backplate may project far enough while the bulb still sits behind the cabinet face, so use the lamp position—not just the metal frame—as the functional reference.
Recessed cabinets simplify the overhead option
When most of the cabinet sits inside the wall, the mirror face is closer to drywall and behaves more like a standard mirror. This usually makes a conventional bath bar easier to use above it. Recessed installation has its own construction constraints, though: framing, plumbing, wiring and wall depth can limit where the cabinet can go.
What if the medicine cabinet has built-in side lights?
If the integrated strips sit near face level and provide adequate output, they may already perform the task-lighting job that separate sconces would otherwise do. In that case, adding a strong overhead bar can create unnecessary glare. Use the cabinet’s published lumen output, CCT and CRI to judge whether extra task lighting is actually needed.
Coordinate the cabinet door and fixture maintenance
Leave enough room to replace bulbs, remove shades and clean the top of the cabinet. A fixture can technically fit above a cabinet yet be difficult to service once installed. This matters most with deep shades, upward-facing glass or cabinets mounted close to the ceiling.
Check the cabinet’s top trim and crown
Some medicine cabinets have decorative top rails, built-in lighting housings or mirrored crown pieces that extend beyond the main box. Measure the furthest projecting part, not just the cabinet body. An overhead fixture can clear the case but still be blocked by a top trim detail.
Cleaning and heat matter too
A light mounted very close to the cabinet top can make dust and cleaning access harder. It can also trap heat around certain lamp types or enclosed shades. Follow the fixture and bulb manufacturer instructions for clearances and enclosed-fixture compatibility rather than assuming tighter is always better.
That final measurement can prevent an expensive installation mistake.
For the closely related decision, see Medicine Cabinet vs Standard Bathroom Mirror.
