This is the general light-to-mirror width guide. For a single horizontal vanity light above one mirror, use roughly 60% to 80% of mirror width as a planning range, then verify the fixture’s full outside dimensions, mirror shape, sink position, wall clearance and electrical-box location. Treat the percentage as a design starting point rather than a building rule. If your candidate fixture would actually be wider than the mirror, move to the dedicated wider-than-mirror exceptions guide instead of using the normal sizing range.
Start with the mirror, then check the vanity and wall
Measure the visible outside width of the mirror. If the mirror has a substantial frame, include the frame because that is the dimension the fixture must look balanced against. Next, measure the usable wall width above the mirror and note any side walls, cabinets, trim, sloped ceiling, shower glass or other constraints.
Finally, mark the centerline of the sink and mirror. A fixture can be mathematically “correct” and still look wrong if it is centered on the vanity cabinet while the sink or mirror is offset.
A practical sizing range

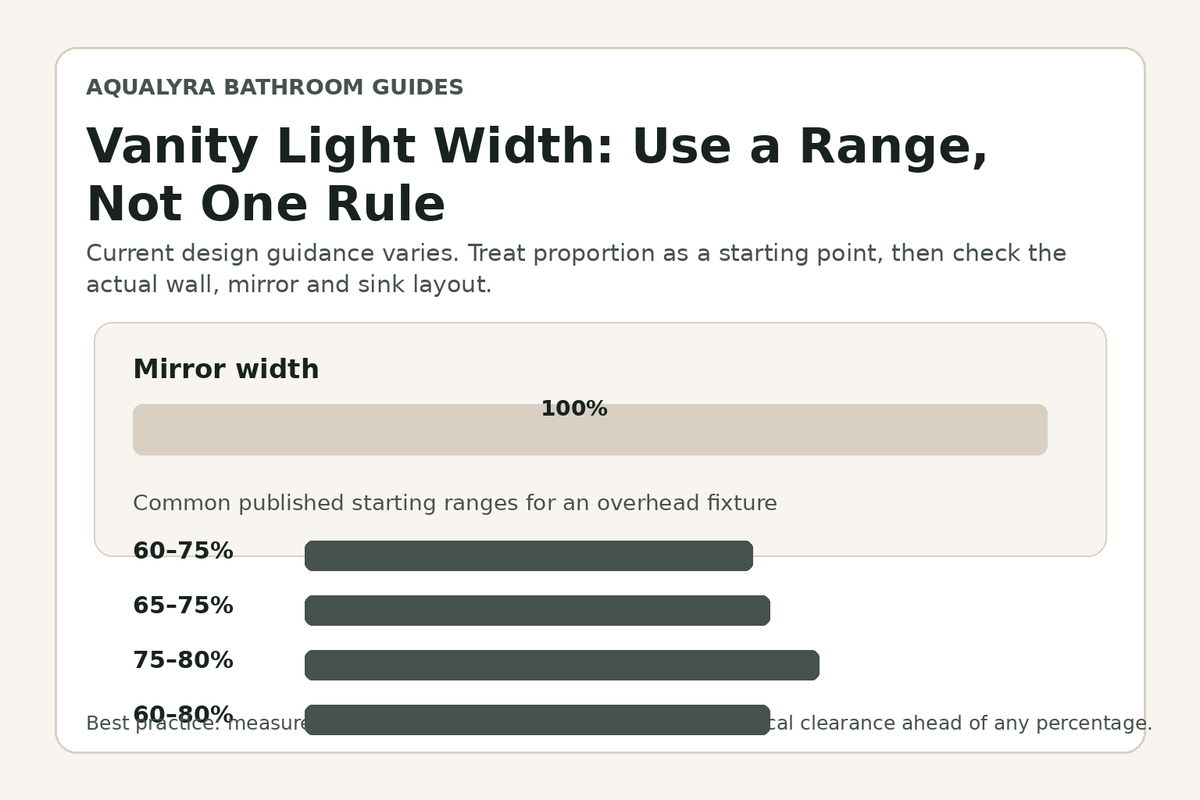

The table below uses a deliberately broad 60–80% planning range. It is not a code table. It simply gives you a sensible first shortlist before you compare the actual fixture shape and wall.
| Mirror width | 60–80% planning range | What to check next |
|---|---|---|
| 24 in | 14–19 in | Compact fixture depth and shade size |
| 30 in | 18–24 in | Whether the fixture feels too small visually |
| 36 in | 22–29 in | Centerline and side clearance |
| 42 in | 25–34 in | Mirror frame thickness and fixture height |
| 48 in | 29–38 in | Light spread and visual mass |
| 60 in | 36–48 in | Single bar versus multiple fixtures |
Why the ranges are wide: a slim LED bar, a six-shade fixture and a heavy decorative fixture can all feel different at the same measured width.
Why published width rules disagree
There is no single professional standard that says an overhead vanity light must equal exactly 75% or 80% of the mirror width. The sources reviewed for this guide use several different ranges. That is why a good sizing process works in two stages: first use a proportion to narrow the field, then use real dimensions to confirm fit.
For example, a fixture with large glass shades may look visually wider than a slim bar with the same edge-to-edge measurement. A mirror with a thick sculpted frame can also carry more visual weight than a frameless mirror. In both cases, the room can justify moving toward the lower end of the range.
Measure the fixture’s full outside width
Do not size a vanity light from the backplate alone. For multi-light fixtures, the useful comparison is the full outside width from the furthest left point to the furthest right point. Also record the fixture height and projection from the wall, especially when the mirror frame is deep or the ceiling is low.
Single mirror, double vanity and side sconces are different problems
A single centered mirror is the easiest case: one overhead fixture can be judged directly against the mirror and sink centerline. A double vanity is more flexible. Depending on the mirror layout, one long fixture, two separate fixtures or side sconces may fit the space better.
Side sconces are a different design problem again. Once the light sources move beside the mirror, the most important checks become usable side clearance, eye-level placement, mirror width and the spacing between the two light sources rather than an overhead-width percentage.
If the fixture would be wider than the mirror
That is an exception case rather than the target sizing range for this page. Evaluate overhang, vanity width, side clearance and mirror shape in the dedicated wider-than-mirror guide.
A real example: a 36.8-inch vanity light
Our Golden 6-Light Bathroom Vanity Light is 36.8 inches wide. That width illustrates why a range is more useful than a single rule:
| Mirror width | 36.8-in fixture as % of mirror | How it compares with the planning range |
|---|---|---|
| 42 in | 87.6% | Above many common published ranges |
| 46 in | 80.0% | At the upper end |
| 48 in | 76.7% | Inside many common recommendations |
| 50 in | 73.6% | Comfortably inside the broad range |
| 60 in | 61.3% | Near the lower end of the broad range |
This does not mean a 48-inch mirror is automatically the “correct” match. It means a 36.8-inch fixture is proportionally plausible on mirrors in that general size band, subject to the wall, sink layout, fixture depth and the look you want. The product uses six E26 sockets, is hardwired, and bulbs are not included.
Browse the Bathroom Lighting collection if you want to compare current fixture dimensions before choosing.
A six-step check before ordering
- Measure the mirror’s visible outside width.
- Measure the open wall width above it.
- Mark the sink and mirror centerline.
- Use roughly 60–80% only to create a starting shortlist.
- Compare each fixture’s full width, height and projection.
- Confirm the junction-box position and installation requirements before purchase.
Common mistakes
Choosing by bulb count. A four-light fixture can be wider than a six-light fixture. Actual dimensions matter more than the number of lamps.
Using the vanity width and ignoring the mirror. The vanity can help set the overall visual boundary, but the mirror is usually the strongest reference for an overhead fixture directly above it.
Turning a design guideline into a safety rule. Width ratios address proportion. They do not confirm electrical suitability, damp-location rating, certification or installation compliance. Those are separate checks for the exact fixture.
For the broader framework behind this topic, see our complete Bathroom Vanity Lighting Guide.
For the related design choice, see Arched vs Rectangular Bathroom Mirrors.
FAQ
Is 75% of the mirror width a good rule?
It is a useful starting point because several current guides cluster around the mid-60s to 80% range, but it is not a universal requirement. Treat it as one checkpoint, not the final decision.
Should a vanity light be centered over the mirror or sink?
When the mirror and sink are aligned, center the fixture with that shared centerline. If the layout is offset, evaluate the mirror, sink and electrical box together rather than centering on the cabinet by default.
Does a wider fixture always provide better task lighting?
No. Width alone does not tell you beam spread, brightness, color quality or shadow control. Those are separate lighting-performance questions.
One final fit check
Before ordering, sketch the mirror and fixture widths on the wall with painter’s tape. Seeing the real span at eye level often reveals proportion problems that a percentage alone cannot show.
Related sizing questions
If your main concern is overhang rather than the general ratio, see When Can a Vanity Light Be Wider Than the Mirror? Exceptions & Fit Checks. If the fixture approaches the outer cabinet edges, use Can a Vanity Light Be Wider Than the Vanity?.
