Complete Bathroom Vanity Lighting Guide: Size, Placement, Brightness & Safety

Four decisions in bathroom vanity lighting: layout, placement, light quality and suitability

Good bathroom vanity lighting is a sequence of decisions. Choose the layout, size and position fixtures around the mirror and users, select comfortable light quality, then verify the exact fixture’s bathroom suitability and installation requirements. Style comes after fit, placement and safety.

This pillar guide gives the framework and links to focused guides for each decision. Treat common dimensions as planning ranges rather than universal code rules.

Bathroom vanity lighting layout map comparing an above-mirror bar with side sconces
Choose the layout before applying height or spacing rules.

1. Choose the lighting layout first

Most vanity walls use an above-mirror fixture, side sconces, or a layered combination. Above-mirror bars save wall space and suit centered electrical boxes. Side sconces place light closer to face level and can reduce overhead shadows, but they require clear wall space on both sides of the mirror. Layered lighting combines vanity task light with ambient room light and needs more wiring and planning.

2. Size the fixture to the mirror, not just the cabinet

For an above-mirror fixture, the mirror is usually the strongest visual reference. Current sizing guides disagree on one exact percentage, with published recommendations commonly falling somewhere around 60% to 80% of mirror width. That is why our dedicated guide uses a range rather than one universal formula.

Read How Wide Should a Bathroom Vanity Light Be Compared to the Mirror? for the full sizing table and examples.

For side sconces, the decision changes. Mirror width determines whether there is enough space on both sides for the fixtures, and the distance between the two light sources becomes more important than the width of one fixture.

3. Use height as a starting zone, not a fixed command

Above-mirror guides commonly place the fixture center somewhere around 75–80 inches above the finished floor. Side-sconce guides often start around 60–66 inches to the center of the light source, because that keeps the light closer to standing eye level.

Those numbers are useful for rough planning, but final height changes with the mirror height, fixture body, users, countertop height and ceiling. Measure from the finished floor and check the actual fixture drawing. A tall decorative mirror may leave almost no wall area for an overhead bar even if the floor measurement looks reasonable.

For the dedicated height workflow, see Bathroom Vanity Light Height From the Floor: Planning Guide and How High Should Bathroom Vanity Sconces Be?.

4. Leave a deliberate gap above the mirror

When a light sits above a mirror, published design guidance often suggests a visible gap of a few inches rather than touching the frame. Current sources vary—roughly 2–6 inches appears repeatedly—so the right value depends on the mirror frame, fixture height and total wall space.

A gap that is too small can make a bulky fixture look crowded. A gap that is very large can visually disconnect the light from the mirror and may push the source too high for useful face lighting. See How Much Space Should Be Between a Vanity Light and Mirror?.

5. Brightness is only one part of light quality

A bathroom vanity needs enough light for the tasks performed there, but lumen count alone does not guarantee a good result. Placement, diffusion, color temperature and color rendering all change how a face looks in the mirror.

Current lighting guides frequently suggest warmer-to-neutral white light around 2700K–3000K for a comfortable bathroom appearance, with some users preferring a cooler neutral range for detailed grooming. CRI is another useful specification: higher CRI light generally renders colors more faithfully than lower-CRI light, which matters for makeup, hair color and clothing.

Do not assume a fixture's number of bulbs tells you the final brightness. Bulb lumen output, shade material, direction and dimming all affect the result. With replaceable-bulb fixtures, the bulb choice can change the experience substantially.

6. Control glare and facial shadows

Clear glass can look visually light and show decorative bulbs, but exposed bright filaments can create glare at eye level. Frosted or diffused shades soften hotspots. Side sconces can reduce the strong downward shadow pattern created by a single overhead source, while a well-diffused above-mirror bar can still be practical when side mounting is impossible.

The most useful test is not whether the wall looks bright. Stand at normal grooming distance and check whether the eyes, nose and chin are evenly visible without painful hotspots in the mirror.

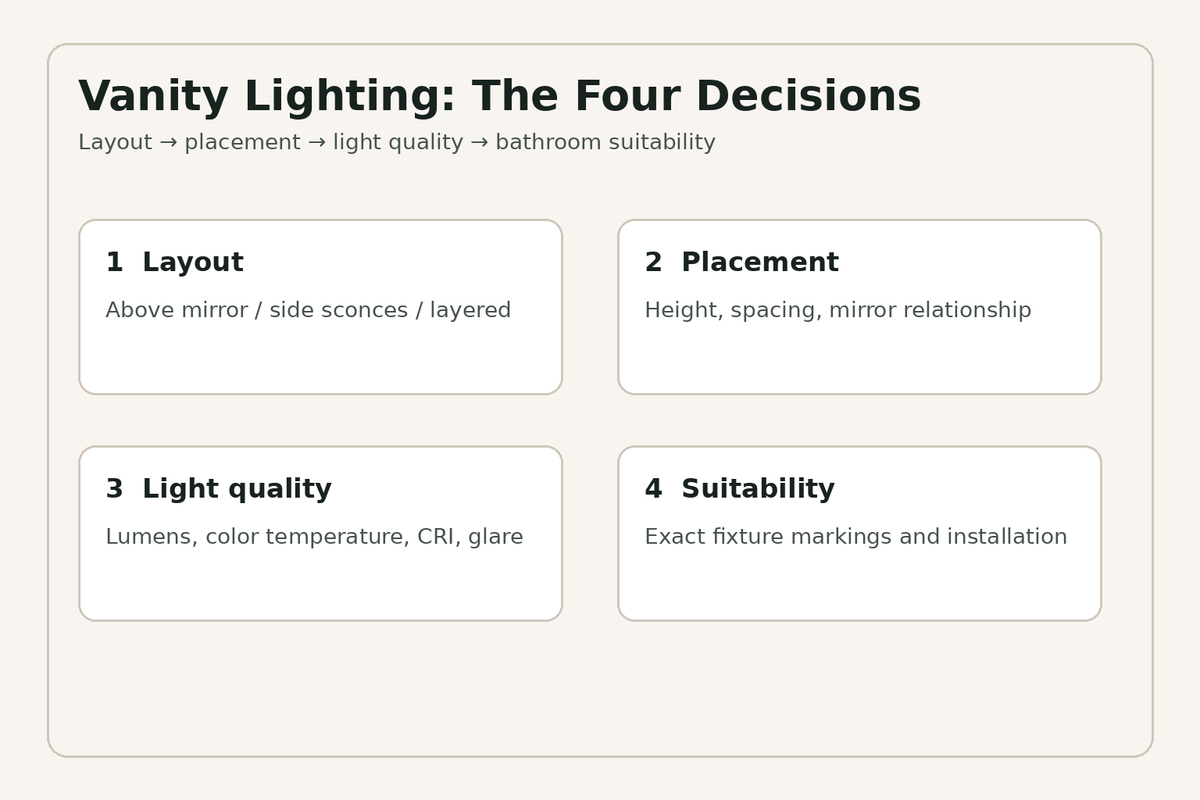

Four decisions in bathroom vanity lighting: layout, placement, light quality and suitability
Plan vanity lighting as four linked decisions rather than a single fixture choice.

7. Bathroom suitability must be verified on the exact fixture

Bathrooms can expose electrical equipment to humidity and, depending on location, splashing or direct water. UL guidance distinguishes dry, damp and wet locations. A luminaire intended for a damp location should be marked for damp or wet locations; wet-location use requires an appropriate wet-location marking.

Do not infer a damp or wet rating from appearance, marketing photos or the fact that a seller calls a product a “bathroom light.” Check the exact model's documentation and markings. Certification, location rating and installation requirements are separate from design advice.

For Aqualyra's current Golden 6-Light Bathroom Vanity Light, we have verified the dimensions, E26 sockets, 110–120V specification and hardwired configuration from the current product data. We are not presenting a UL/ETL/NRTL or damp-location claim until exact-model documentation is confirmed.

8. Plan around the electrical box before ordering

Replacing an existing fixture is easiest when the new mounting plate works with the existing box location. If the box is off-center, too high, too low or conflicts with the mirror, moving it can turn a simple fixture swap into electrical and wall work.

For hardwired fixtures, installation should follow applicable local requirements. If wiring, box support or bathroom-location suitability is uncertain, use a qualified electrician.

Quick planning checklist

  1. Choose above-mirror, side-sconce or layered lighting.
  2. Measure vanity, mirror, open wall width and ceiling height.
  3. Mark the sink/mirror centerline.
  4. Choose a provisional fixture height based on the actual users.
  5. Check fixture width, height and projection.
  6. Compare brightness, color temperature, CRI and diffusion.
  7. Verify the exact fixture's location suitability and electrical requirements.
  8. Confirm the junction-box position before ordering.

Continue with the specific placement question

Focused Bathroom Lighting Guides

Light Quality, Bulbs & Controls

Safety, Comfort & Installation Guides

Installation & Finish Guides

Buying, Style & Finish Guides

Before ordering, use the Bathroom Vanity Light Buying Checklist.

Sources reviewed

Editorial note: Reviewed September 22, 2026. This guide separates design guidance from exact-model electrical and compliance facts. See our Editorial Policy and Sources & Research Policy.
